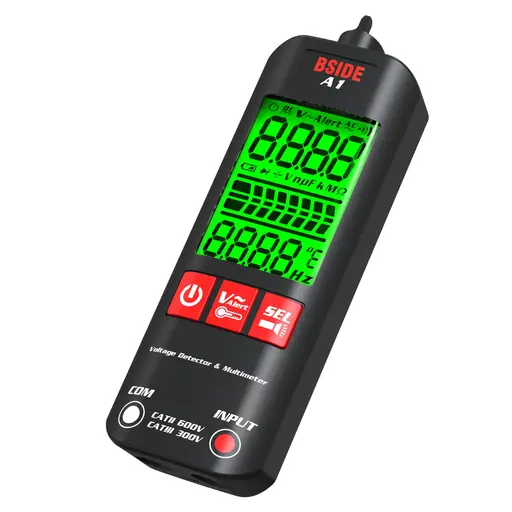

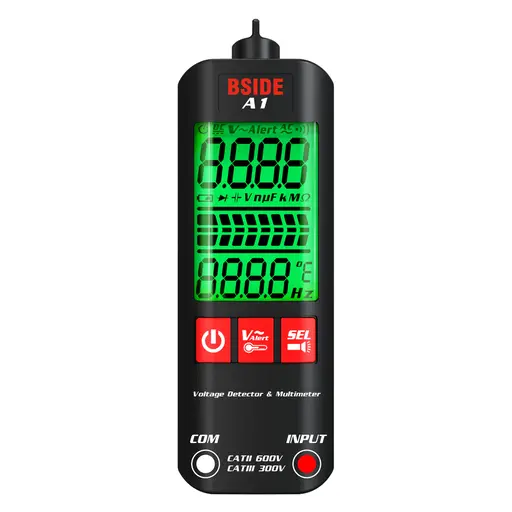

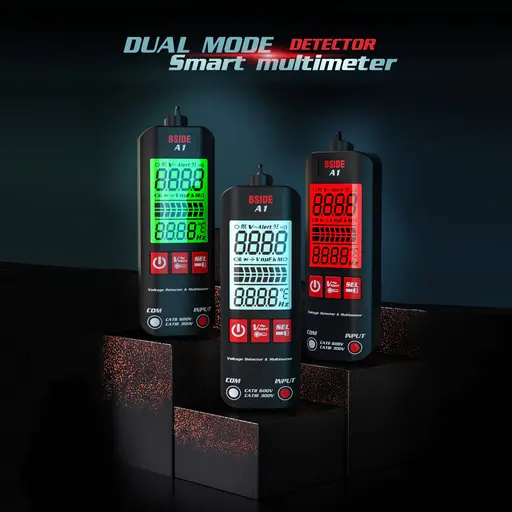

Automatic Anti-Burn Intelligent Digital Multimeter
Original price was: $49.95.$29.95Current price is: $29.95.
One of the best mini multimeters you can ever obtain!

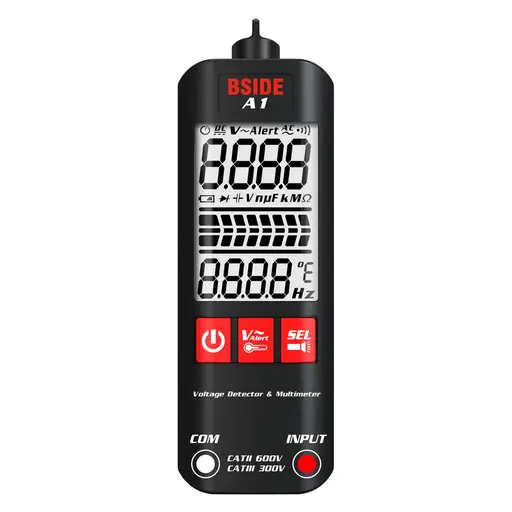

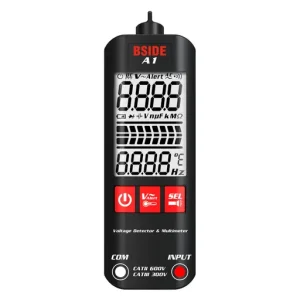

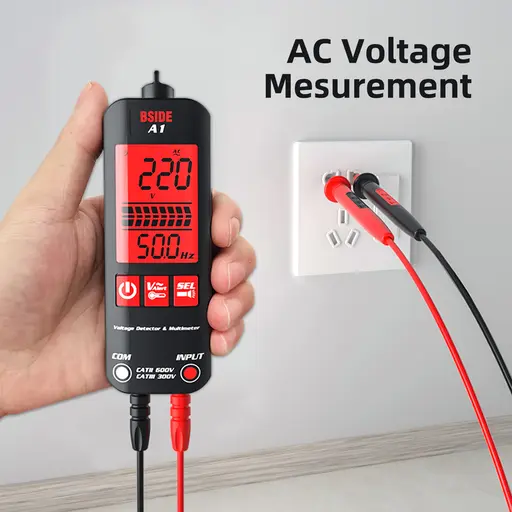

This is a mini A1 Fully Automatic Anti-Burn Intelligent Digital Multimeter, which has an automatic identification design. Connect the test leads in parallel to the circuit, power supply, and tested resistor. The meter automatically identifies whether it is AC voltage, DC voltage, or resistance, and shows the frequency on the screen.
Dual Mode: Automatic Anti-Burn Intelligent Digital Multimeter supports auto mode and manual mode. Auto mode can automatically measure AC / DC voltage, resistance and continuity.

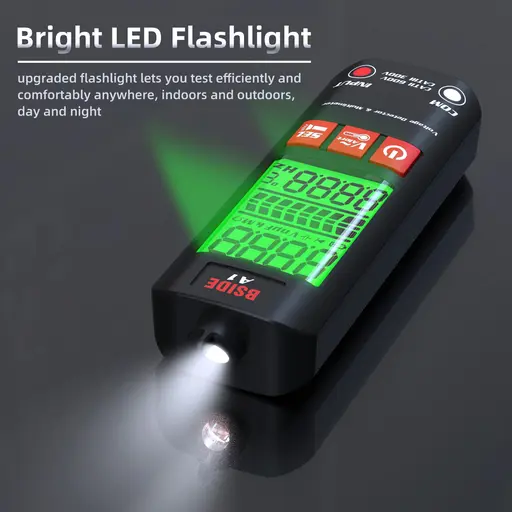

Bright LED Flashlight: LED flashlight lets you test efficiently and comfortably anywhere, indoors and outdoors, day and night.

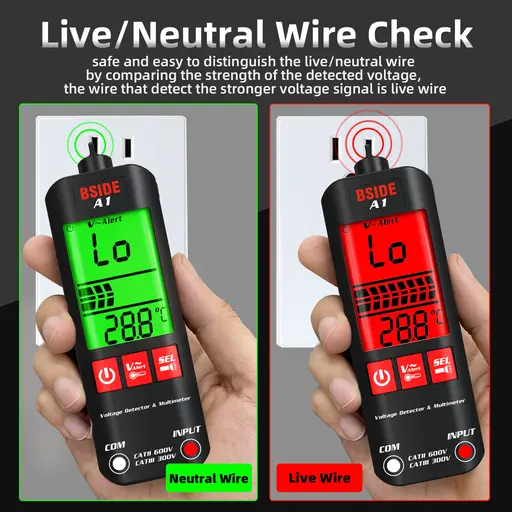

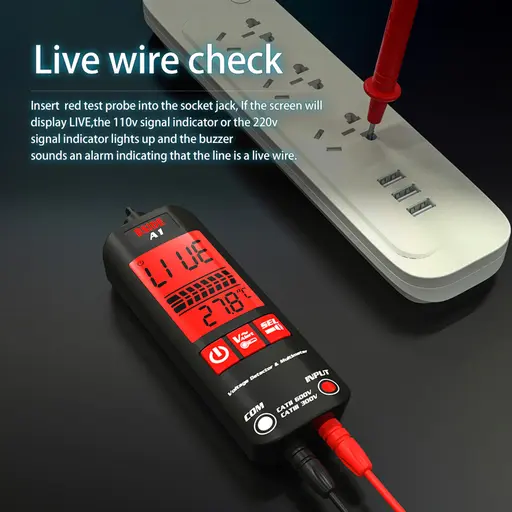

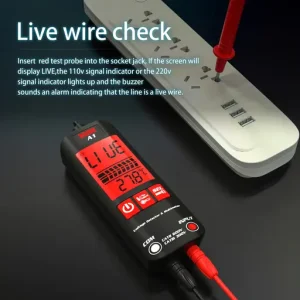

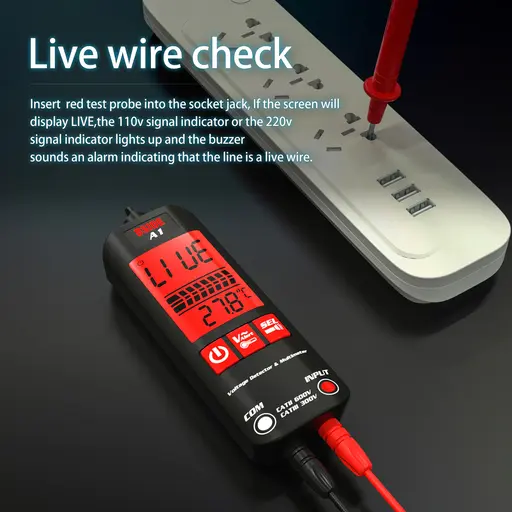

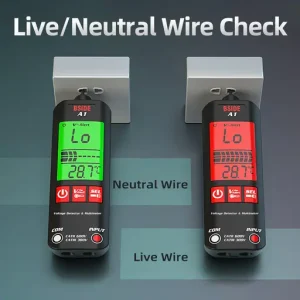

Live / Neutral Wire Check: Safe and easy to distinguish the live / neutral wire by comparing the strength of the detected voltage, the wire that detect the stronger voltage signal is live wire.

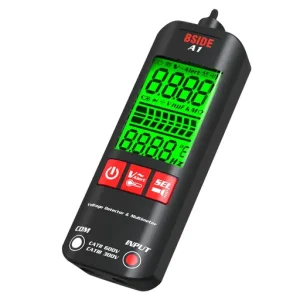

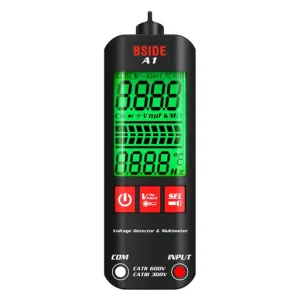

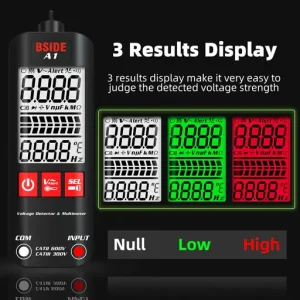

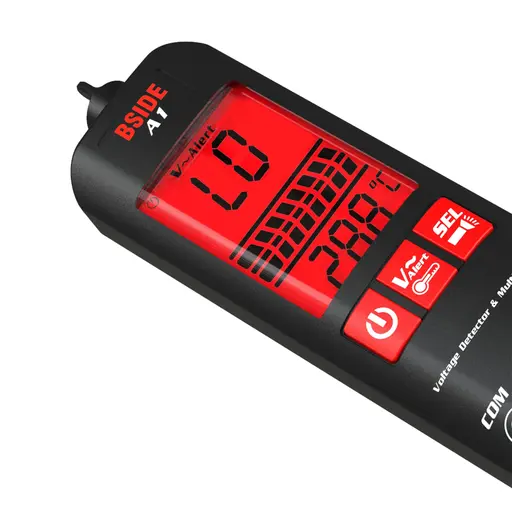

LCD Display: Greatly enhance the reading experience, the lighted up numbers and letters make it very easy to read, even in bright sunlight or poor light.

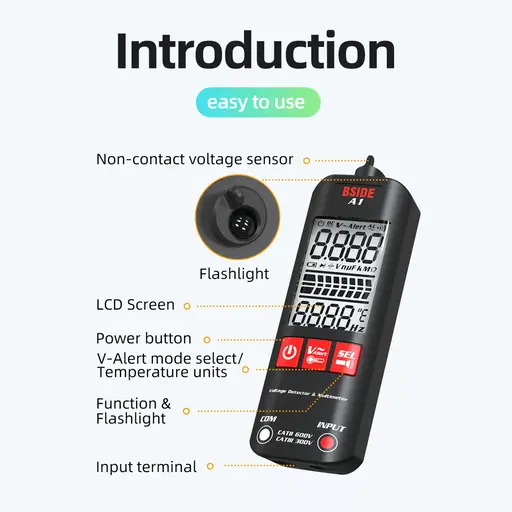

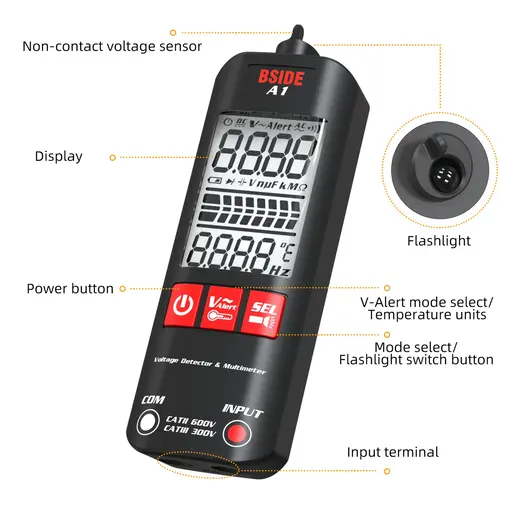

Easy to Use: Insert the red test lead into the “INPUT” terminal, black test lead into the “COM” terminal. The AC and DC voltage, resistance and continuity can be measured directly after startup.
A1 Fully Automatic Anti-Burn Intelligent Digital Multimeter, Non Contact AC/DC Voltage Detector, Fast Accurately Electrical Tester Pen, Auto Senses Zero and Fire Wires, Voltage, Current, Dual Mode Detector & Multimeter with LED Light, Dual Range Live/Null Wire Sensor, BSIDE A1 Mini Multimeter LCD Digital Tester Voltage Detector 2000 Counts DC/AC Voltage Frequency Resistance NCV True RMS Meter, BSIDE A1 Voltage Tester Detector Multimeter:
- Brand: BSIDE
- Model: A1
- Color: Black
- Shell Material: ABS
- Display: LCD
- Screen: 2.2 inch
- Maximum Display Value: 2000 Digits

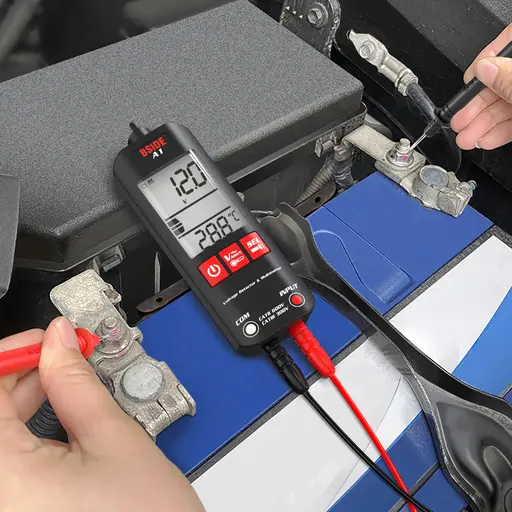

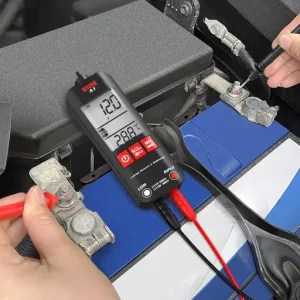

- DC Voltage: 500V 0.01V ± (0.8% + 3)
- AC Voltage: 500V 0.01V ± (1.2% + 5)
- Resistance: 0Ω-10MΩ 1Ω ± (1.2% + 3)
- Frequency: 1000Hz 0.1Hz ± (2.0% + 3)
- Continuity: If the resistance less than 30Ω, the beeper sounds
- Polarity Indication: Self-indicating, ‘-‘ means negative polarity
- Over-Range Display: ‘OL’ or ‘-OL’
- Sampling Time: The meter figures show about 0.4 seconds
- Automatic Power Off Time: 5 minutes
- Battery Low Voltage Indication: LCD Display Symbol
- Operational Temperature: 0~40°C / 32~104°F
- Storage Temperature: -10~60°C / -4~140°F
- Operating Altitude: ≤ 2000 m

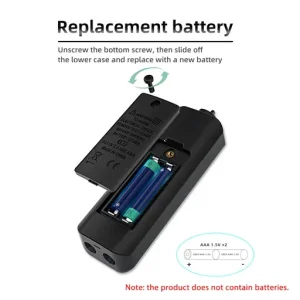

- Battery: 1.5V AAA × 2 (Not Included)
- Automatic Measuring Range: YES
- Full Measuring Range Overload Protection: YES
- Flashlight: YES

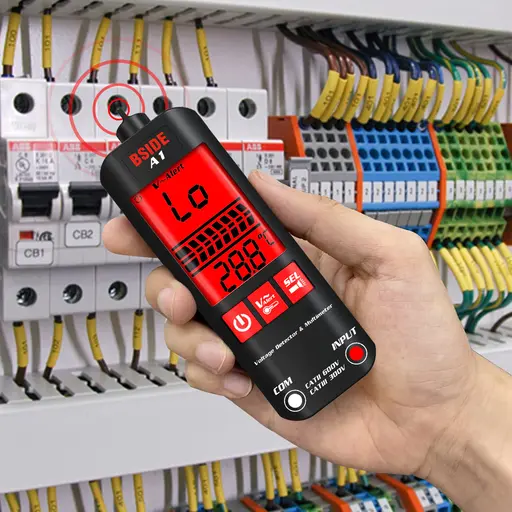

- V-Alert (NCV / Non-Contact Voltage Detection): YES
- Live / Neutral Wire Check: YES
- Breakpoint Locate: YES
- Automatic Identification: YES

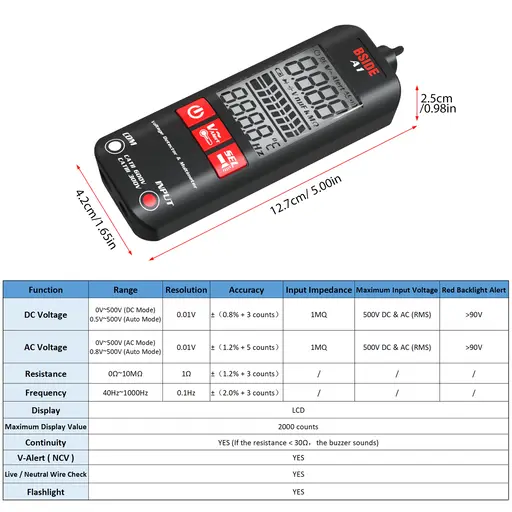

- Item Size: 12.7 × 4.2 × 2.5 cm / 5.00 × 1.65 × 0.98 in (L × W × H)
- Packing Size: 16.5 × 7.3 × 3.8 cm / 6.50 × 2.87 × 1.50 in (L × W × H)
- Net Weight: 67 g / 2.36 oz (Without Battery)
- Gross Weight: 157 g / 5.54 oz

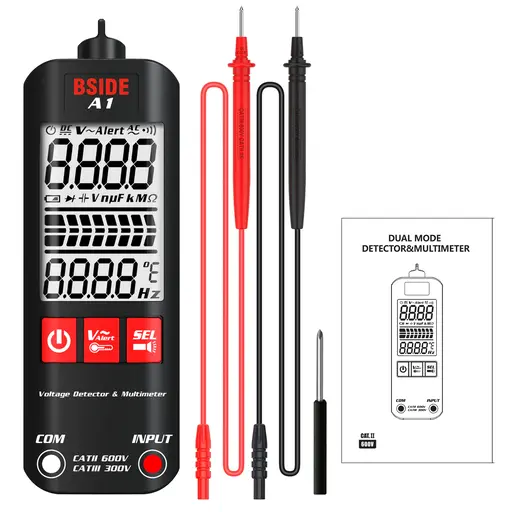

- Package List: 1 × Automatic Anti-Burn Intelligent Digital Multimeter (Without Battery), 2 × Test Leads (Red & Black), 1 × Screwdriver, 1 × User Instruction Manual (English)
Note:
- Do not input voltages higher than 500V, showing higher voltage are possible, but it may damage the meter.
- When measuring high voltage, be careful to avoid electric shock.
- Disconnect the test leads from the circuit when completed measurement.
- Due to manual measurement, the size may be slightly different. Thank you for your understanding.
- Due to different light conditions and different monitors, item color displayed in photos may be showing slightly different from real object.
